Setup

1. Login to Axle

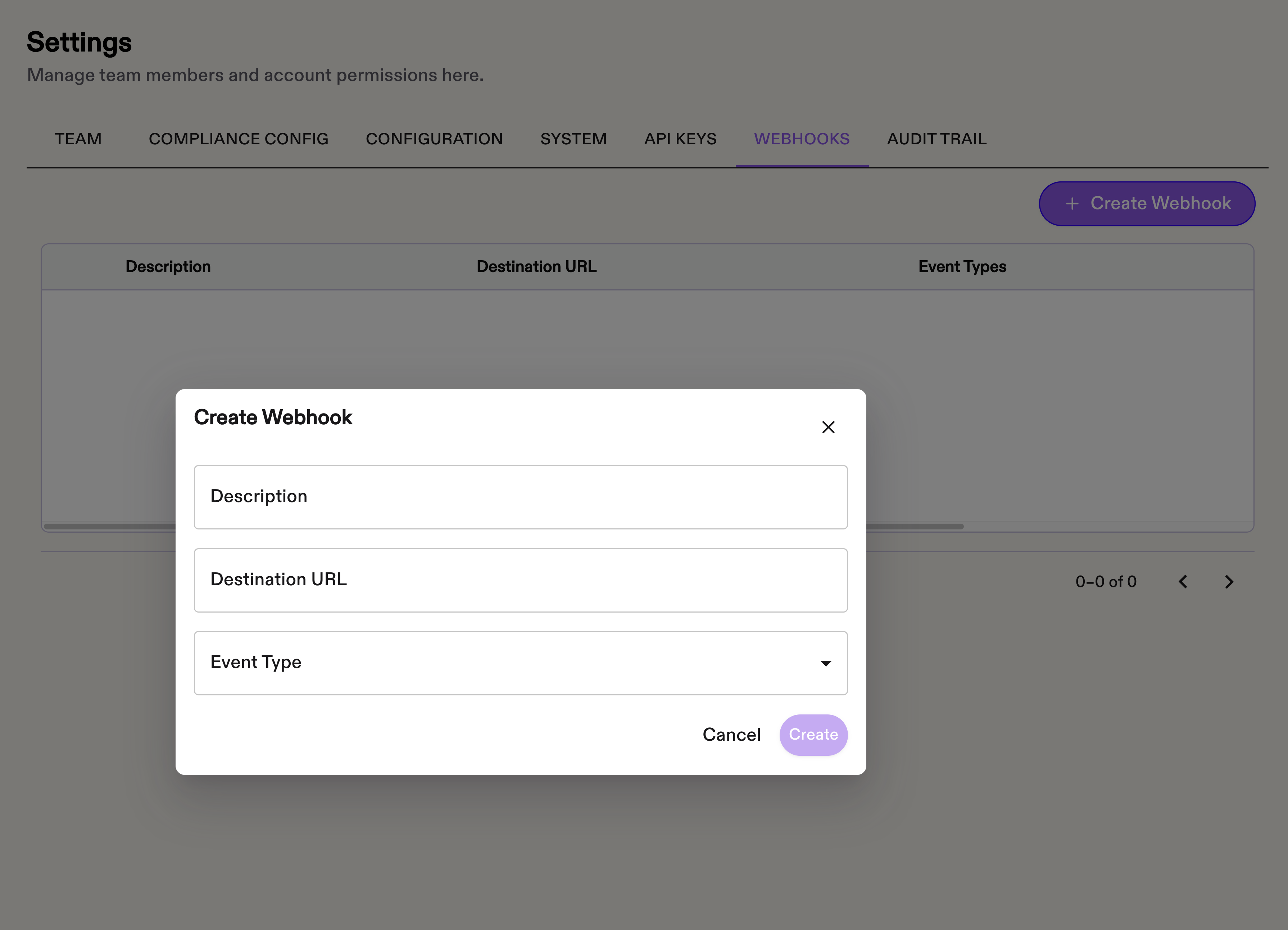

2. Within settings, navigate to the Webhooks tab
3. Submit the form to create your webhook by pressing "Create Webhook"

Webhook Details

Webhook Documentation

Overview

The system provides webhook notifications for critical events in transaction monitoring and investigation processing. Webhooks enable real-time updates to external systems when key events occur.

Webhook Events

Transaction Upload Events

TRANSACTION_UPLOAD_PROCESSING

Triggered when transaction file download from storage is successful.

Payload:

{
  "event_type": "transaction_upload.processing",
  "session_id": "b9e748f2-a600-4e6b-96b9-991a9399bb60",
  "organization_id": "da4ad981-739b-4524-8c99-f3d339ca1ae7",
  "message": "We downloaded your transaction file."
}

TRANSACTION_UPLOAD_VALIDATED

Triggered after successful validation of transaction data.

Payload:

{
  "event_type": "transaction_upload.validated",
  "session_id": "b9e748f2-a600-4e6b-96b9-991a9399bb60",
  "organization_id": "da4ad981-739b-4524-8c99-f3d339ca1ae7",
  "message": "All transactions were successfully validated"
}

TRANSACTION_UPLOAD_COMPLETED

Triggered when transactions are successfully inserted into the database.

Payload:

{
  "event_type": "transaction_upload.completed",
  "session_id": "b9e748f2-a600-4e6b-96b9-991a9399bb60",
  "organization_id": "da4ad981-739b-4524-8c99-f3d339ca1ae7",
  "message": "All of the transaction were successfully inserted."
}

TRANSACTION_UPLOAD_FAILED

Triggered when transaction processing fails at any stage.

Payload:

{
  "event_type": "transaction_upload.failed",
  "organization_id": "da4ad981-739b-4524-8c99-f3d339ca1ae7",
  "session_id": "b9e748f2-a600-4e6b-96b9-991a9399bb60",
  "error_count": 1,
  "errors": [
    "Failed to insert transactions"
  ],
  "description": "Transaction validation failed"
}

Investigation Events

ALERT_ANALYSIS_COMPLETED

Triggered when Rose alert investigation analysis completes.

Payload:

{
  "event_type": "alert.analysis_completed",
  "timestamp": "2024-01-15T11:00:00.000000",
  "organization_id": "da4ad981-739b-4524-8c99-f3d339ca1ae7",
  "investigation_id": "387b41df-7b57-434c-8be8-064d3bb91fcd",
  "alert_source_id": "alert-id-456",
  "disposition": "ESCALATED"
}

PDF Generation Events

PDF Generation events are only generated for ROSE PDFs. Baley PDF generation is a distinct endpoint that requires polling.

Rose PDF generation can occur synchronously or asynchronously (webhook delivery). Only asynchronous requests result in webhook event delivery. Synchronous vs asynchronous PDF generation is configured with a API request parameter and defaults to synchronous generation.

Rose PDF generation is generally relatively fast. It rarely takes more than 30 seconds to generate. If you have not received a success or failure webhook event after ~90 seconds, you should assume there is a webhook configuration problem and contact Axle support. When Rose PDF webhooks are properly configured for both success and failure PDF event types, you will receive either a success or failure event for every PDF generation request. We strongly recommend setting up webhooks for both PDF generation success and failure events to prevent silent failures. These are separate webhook events and must be configured separately.

ROSE_PDF_GENERATED

Triggered when a Rose PDF has been generated successfully. Payload carries the base64 encoded PDF plus metadata.

Payload:

{
  "event_type": "rose.pdf.generated",
  "investigation_id": "cf4a5a38-4d8b-4ff5-964a-77f0c0fd5534",
  "organization_id": "da4ad981-739b-4524-8c99-f3d339ca1ae7",
  "timestamp": "2024-01-15T11:00:00.000000",
  "pdf": {
    "content": "<base64-encoded bytes>",
    "content_type": "application/pdf",
    "filename": "rose-alert-cf4a5a38-4d8b-4ff5-964a-77f0c0fd5534.pdf"
  }
}

ROSE_PDF_GENERATION_FAILED

Triggered when PDF rendering fails after a PDF generation request was accepted (202 response code). On occasion, we are unable to generate a PDF as requested. In these cases we will trigger a ROSE_PDF_GENERATION_FAILED event when rendering fails after the request was accepted in asynchronous webhook delivery mode.

Payload:

{
  "event_type": "rose.pdf.generation_failed",
  "investigation_id": "cf4a5a38-4d8b-4ff5-964a-77f0c0fd5534",
  "organization_id": "da4ad981-739b-4524-8c99-f3d339ca1ae7",
  "timestamp": "2024-01-15T11:00:00.000000",
  "error": {
    "message": "Human-readable explanation"
  }
}

Webhook Configuration

Webhooks are configured per organization and event type. Each organization can have multiple webhook endpoints for the same event.

Webhook Security

Authentication:

• Each webhook request includes HMAC-SHA256 signature in X-Signature header
• Signature computed using organization's webhook secret
• Verify signature before processing webhook payload

Headers:

X-Signature: signature...
X-Delivery-ID: unique-delivery-id
User-Agent: Hikari-Webhook/1.0
Content-Type: application/json

Retry Logic

• Failed webhook deliveries are retried with exponential backoff and jitter
• Maximum 5 retry attempts

Response Requirements

• Webhook endpoint must return HTTP 2xx status code within 10 seconds
• Non-2xx responses or timeouts trigger retry logic
• Response body is ignored

Error Handling

Common Failure Scenarios

1. Validation Failures

   • Invalid JSON format
   • Missing required fields
   • Entity reference mismatches
   • Data type violations

2. Database Insertion Failures

   • Duplicate transaction IDs
   • Foreign key violations
   • Connection timeouts

Security

• All webhooks are signed using HMAC-SHA256
• Verify signature before processing payload
• Only HTTPS endpoints with TLS 1.2 or higher are supported
• Keep your webhook secret secure

Need help? Contact Axle.

Implementation Examples

import hmac
import hashlib
import json
from flask import Flask, request, abort

app = Flask(__name__)
WEBHOOK_SECRET = "your-webhook-secret"

def verify_signature(payload: bytes, signature: str, secret: str) -> bool:
    expected = hmac.new(
        secret.encode(),
        payload,
        hashlib.sha256
    ).hexdigest()
    return hmac.compare_digest(
        f"sha256={expected}",
        signature
    )

@app.route('/webhook', methods=['POST'])
def handle_webhook():
    signature = request.headers.get('X-Signature')
    if not signature:
        abort(401)

    if not verify_signature(request.data, signature, WEBHOOK_SECRET):
        abort(401)

    event = json.loads(request.data)
    event_type = event.get('event_type')

    if event_type == 'transaction_upload.completed':
        handle_upload_complete(event)
    elif event_type == 'alert.analysis_completed':
        handle_analysis_complete(event)
    elif event_type == 'transaction_upload.failed':
        handle_upload_failure(event)

    return '', 200

def handle_upload_complete(event):
    print(f"Transactions uploaded: {event['transactions_inserted']}")

def handle_analysis_complete(event):
    print(f"Investigation {event['investigation_id']} completed: {event['disposition']}")

def handle_upload_failure(event):
    print(f"Upload failed: {event['errors']}")
